Brand : Davis Instruments
Country of Manufacture : United States
Contents :
Combined outdoor sensor unit and fixings

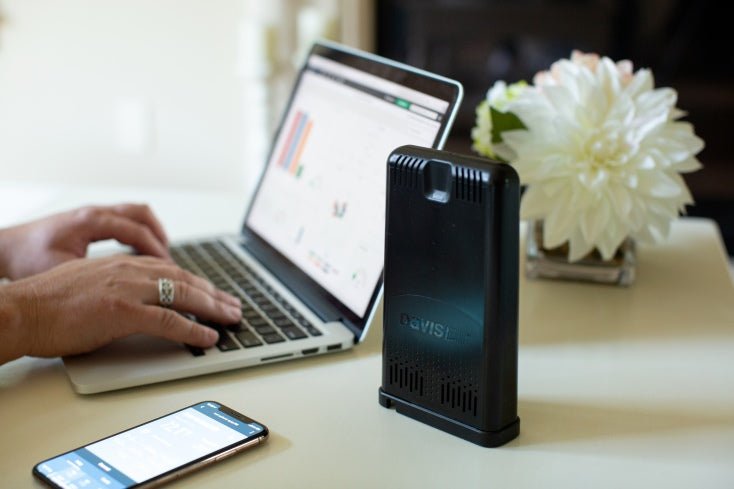

WeatherLink Live unit with power cable & optional ethernet cable
Instruction manuals
Explanation :
Amazon Alexa Integration
• To use WeatherLink Live with Amazon Alexa, simply enable the WeatherLink skill, then just say, “Alexa, ask WeatherLink to get my current conditions.”
Welcome to the Smart Home

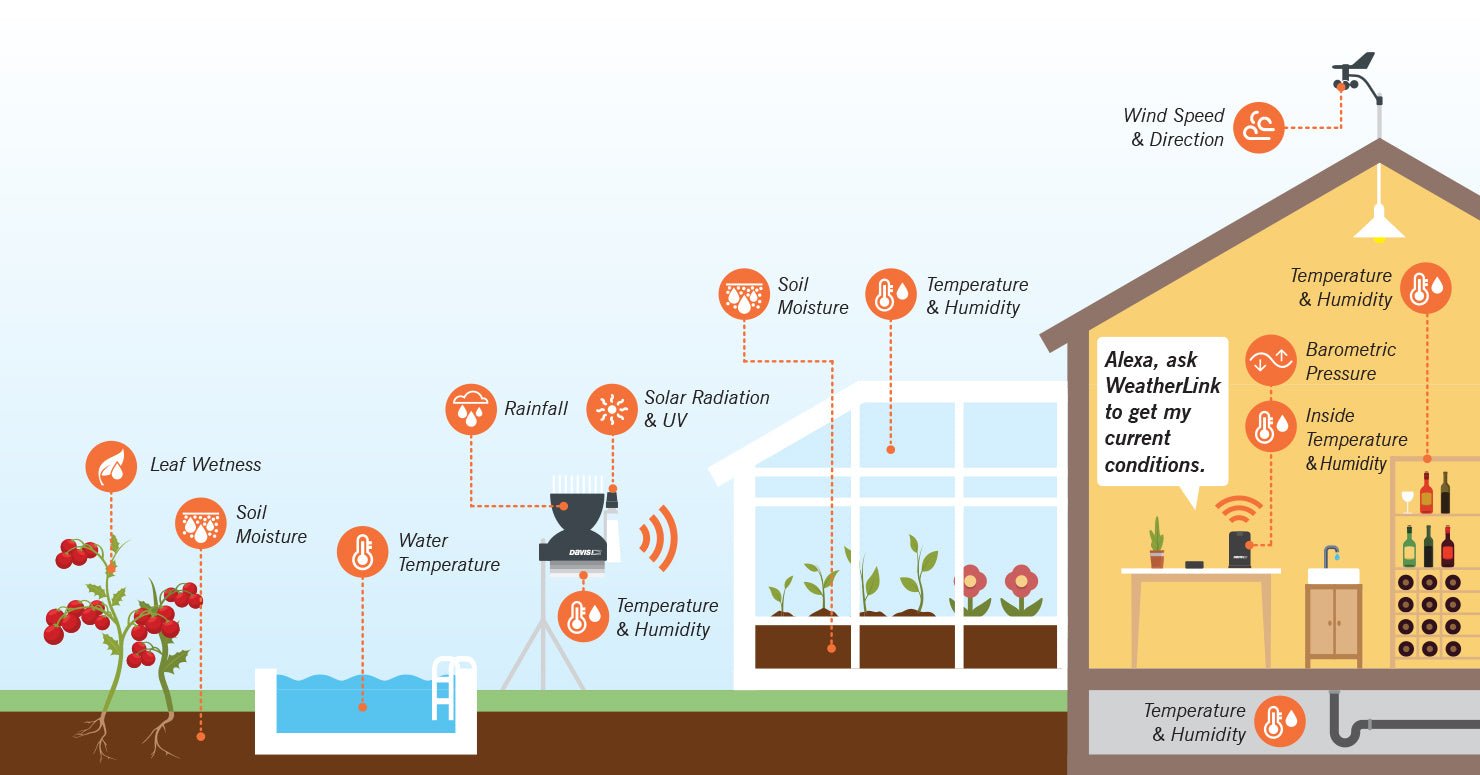

• Connect your data to smart irrigation systems or other IoT/smart home devices.
Securely share your data
• Contribute your weather data to the global WeatherLink community.
• Share data with friends, family, or co-workers via the WeatherLink website and mobile applications.
• Upload to a growing list of third-party sites like Weather Underground or CWOP.

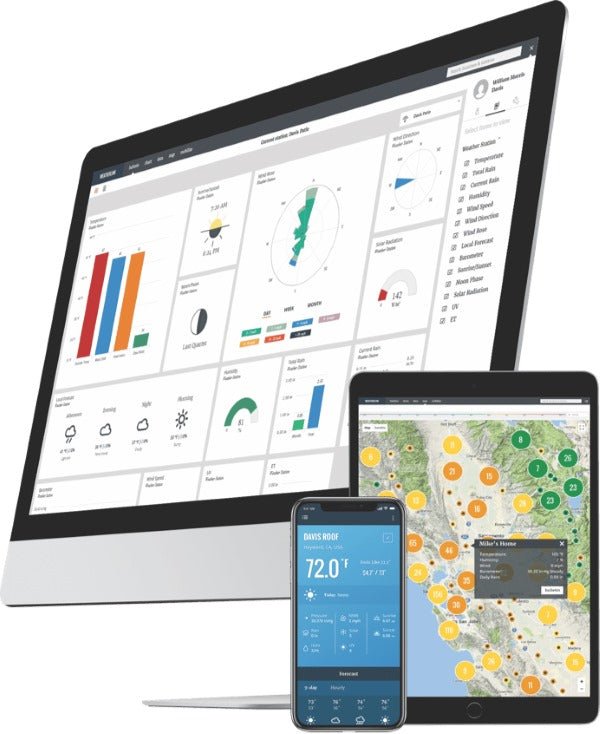

• Build your own weather tools with the powerful suite of WeatherLink API products.
Enjoy real-time data
• Experience the fastest reporting weather data on the market, with any personal device. Use the WeatherLink iOS or Android app to watch wind gusts and direct changes as they occur. While on Wi-Fi, your WeatherLink app will receive data every 2.5 seconds; your data will upload to WeatherLink.com every minute.
Never lose data
• Safeguard recorded data with WeatherLink Live’s internal auxiliary memory.
• Protect against data loss with redundant battery backup.
Effortless setup
• Simple Bluetooth setup using the WeatherLink app.
• No Wi-Fi? No problem. Easily connect to Ethernet with the included cable.
Long-range wireless data
• Depend on Davis’s industry-leading, proprietary, frequency-hopping, spread spectrum radio to transmit data up to 1,000 ft. (300 m).
Comes Wi-Fi ready, with a 2 metre power cable, and also a 1.5 metre Ethernet cable; if you prefer a wired connection.
Ideal For : Education, Amateur, Interested, Gardeners, Agronomy
Measurements (Industrial) Filter : Barometric Pressure, Dew Point, Humidity, Rainfall, Temperature, Wind Direction, Wind Speed
Indoor Unit :
WeatherLink Live Internal Sensors
Barometric Pressure
Resolution and Units: 0.01" Hg, 0.1 mm, 0.1 hPa, 0.1mb. (user selectable)
Range: 16.00" to 32.50" Hg, 410 to 820 mm Hg, 540 to 1100 hPa or mb
Elevation Range: -1500' to +15,300' (-460 m to 4670 m)
Update Interval: 1 minute
Inside Relative Humidity
Resolution: 0.1%
Range: 1 to 100% RH
Accuracy: ±2%
Update Interval: 1 minute
Inside Temperature
Resolution: Current Data: 0.1°
Range: -+32° to +140°F (0° to +60°C)
Sensor Accuracy: ±0.5°F (±0.3°C) (typical)
Update Interval: 1 minute
Dimensions : 180 x 100 x 30 mm (WeatherLink Live)
Batteries : 4 x AA for WeatherLink Live (for backup)
Power : UK 230V adapter included (EU 230V supplied to EU orders)
Outdoor Unit :
The fully-integrated, corrosion-proof sensor suite (ISS) is built to take all the weather your location can give. The ISS combines a rain collector, temperature/humidity sensors, and anemometer/direction vane into a single unit for optimum performance and durability. The smaller profile sensor suite is designed to minimise visual impact in your garden or on your roof.
Sensors :
Rain Collector Self-emptying tipping spoon measures rain with 0.2mm resolution.
Anemometer Records wind speeds as low as 2 mph and as high as 150 mph.
Temperature and Humidity Provides outside temperature readings from -40°C to 65°C. Also measures relative humidity from 0 to 100%.
Wind Direction Measures wind direction in compass rose points or degrees.
Dimensions : 329 x 146 x 340 mm
Batteries : 1 x LR123 lithium back up battery required (not included). Ordinarily this should last 2-3 years.
Power : Solar powered
Installation :
The design of the composite outdoor sensor unit makes for an easy install with the included mounting hardware kit. The unit does need to be installed on top of a pole - see Mounting Options above for mounting pole kit and tripod options.
