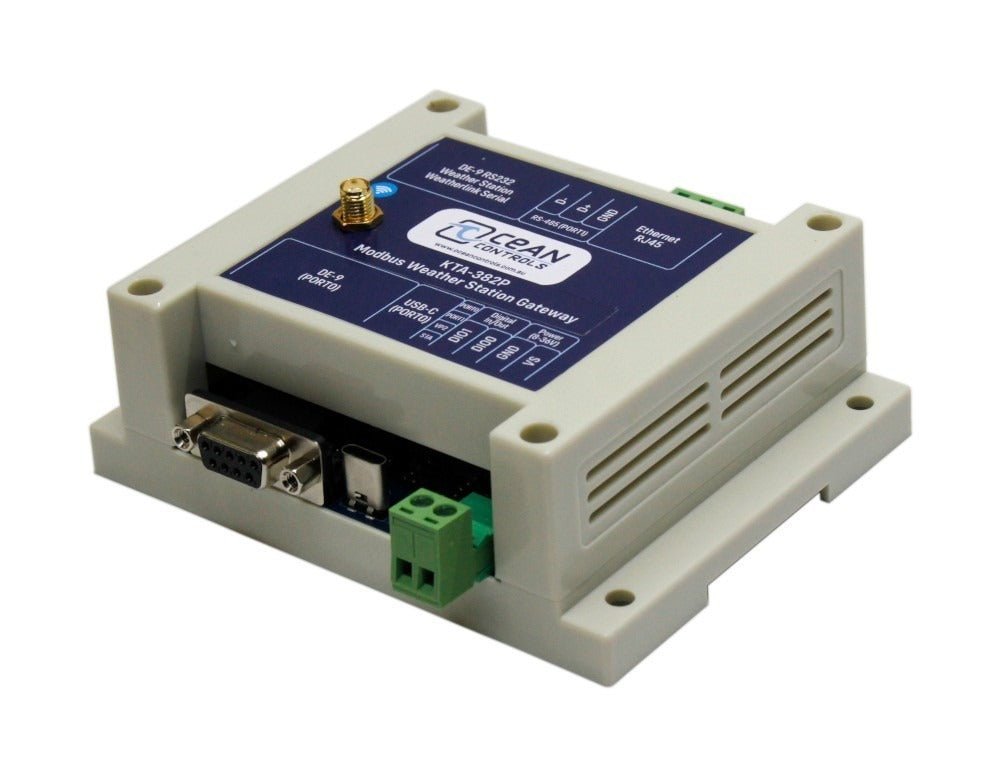

Ocean Controls KTA-382P Modbus RTU/TCP PoE Weather Station Gateway
The Ocean Controls KTA-382P combines the features of the previous KTA-282 and GWY-141 models and connects a Davis Instruments weather station to a Modbus network, supporting both TCP and RTU protocols. This PoE (Power over Ethernet) version draws power over the network cable for simpler installation. Connecting via the Davis WeatherLink (Vantage Pro Serial) cable, it joins the network as a Modbus TCP/IP or RTU slave so your PLC, RTU or SCADA system can monitor and act on wind speed, wind direction, temperature and more. It is compatible with the cabled and wireless Vantage Pro 2 and Vantage Pro 2 Plus weather stations. A non-PoE version is also available as the KTA-382S.
- Modbus RTU and Modbus TCP/IP support
- Connects a Davis weather station to a PLC/RTU/SCADA system
- Acts as a Modbus TCP/IP or RTU slave on your network
- Connects via the Davis WeatherLink (Vantage Pro Serial) cable
- Exposes wind speed, wind direction, temperature and more
- Combines features of the previous KTA-282 and GWY-141 models
- PoE (Power over Ethernet) powered
Brand: Ocean Controls
Model: KTA-382P Modbus RTU/TCP Weather Station Gateway
Protocol: Modbus RTU and Modbus TCP/IP (slave)
Power: PoE (Power over Ethernet)
Connection: Davis WeatherLink cable (Vantage Pro Serial) to station console
Data Exposed: Wind speed, wind direction, temperature and other weather parameters
Compatible Stations: Cabled/Wireless Vantage Pro 2 and Vantage Pro 2 Plus
Application: PLC / RTU / SCADA integration
Resources & Downloads
- Worldwide shipping
Standard delivery (Royal Mail) – £3.95 to £4.99
Available for purchases under £200. Your order should be with you within 4–5 working days.
Tracked delivery – £5.95 to £6.50
Our tracked delivery is sent via Royal Mail Tracked, Parcelforce or UPS. Your order should be with you within 1–2 working days.
Next Day service – £9.95
Place your order before 2:30pm, Monday to Friday, to receive it the next working day (excludes Saturdays, Sundays and public holidays). Orders placed at the weekend are shipped on the next working day and usually arrive the following day. Goods shipped on a next-working-day service may be subject to courier delays outside of our control. Services to outlying areas may differ, take longer, or have enhanced options unavailable.
International delivery
International delivery is available for this product. The cost and delivery time depend on the destination country.
Collection
You can collect from our warehouse. Please call before visiting to ensure your order is ready.
The KTA-382 Modbus gateway enables easy connection of a PLC, RTU or SCADA system by Modbus RTU or TCP to a Davis weather station. It connects to the station's console via the Davis WeatherLink cable (WeatherLink for Vantage Pro Serial) and joins the Modbus network as a Modbus TCP/IP or RTU slave, so your SCADA system or other Modbus devices can monitor and take action based on wind speed, wind direction, temperature and more. This is the PoE (Power over Ethernet) version, drawing power over the network cable.
Compatible weather stations
- Cabled Vantage Pro 2
- Cabled Vantage Pro 2 Plus
- Wireless Vantage Pro 2
- Wireless Vantage Pro 2 Plus
Also available: KTA-382S non-PoE power version.
